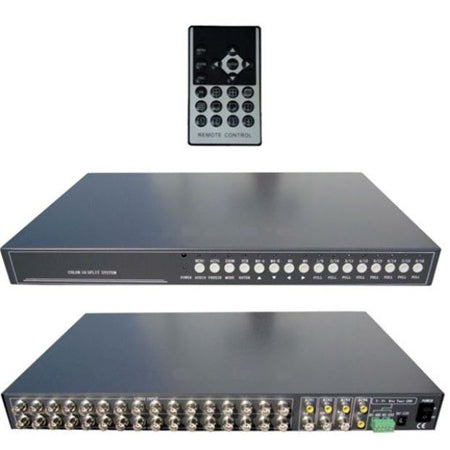

The VM-16RT video mux, also known as a CCTV multiplexer, supports up to 16 channels of analog cameras or video from other analog devices using BNC connectors. BNC to RCA converters may be used for analog video devices that use RCA connectors and RCA cables. For CCTV cameras, BNC video inputs are typically used. The VM-16RT real-time video multiplexer has 16 BNC video inputs and 16 BNC video loop outputs. The VM-16RT mux also supports 4 channels of audio using RCA inputs which can be used for audio surveillance microphones. There are two BNC video outputs which can be used for multiple monitors, or one for a monitor, and one for a surveillance VCR. There is also one BNC VCR input which can be used with a surveillance VCR recorder to playback recorded video from the VCR. The VM-16RT is capable of controlling pan, tilt, zoom cameras (PTZ cameras) using the RS-485 or RS-232 terminals. A wireless remote control is included with the VM-16RT multiplexer which can be used to control switching the screen views and to access and control the on screen display settings. The VM-16RT is built in a 1U rackmountable case.
Video Mux Display Modes
Single Screen / Full Screen for Single Camera
Dual Screen / Split Screen with Auto Image Pan
Quad Screen
8 Channel Grid ( One camera large with 7 smaller surrounding )
16 Channel Grid
Picture in Picture
Dual Picture in Picture
Auto Sequence Mode
